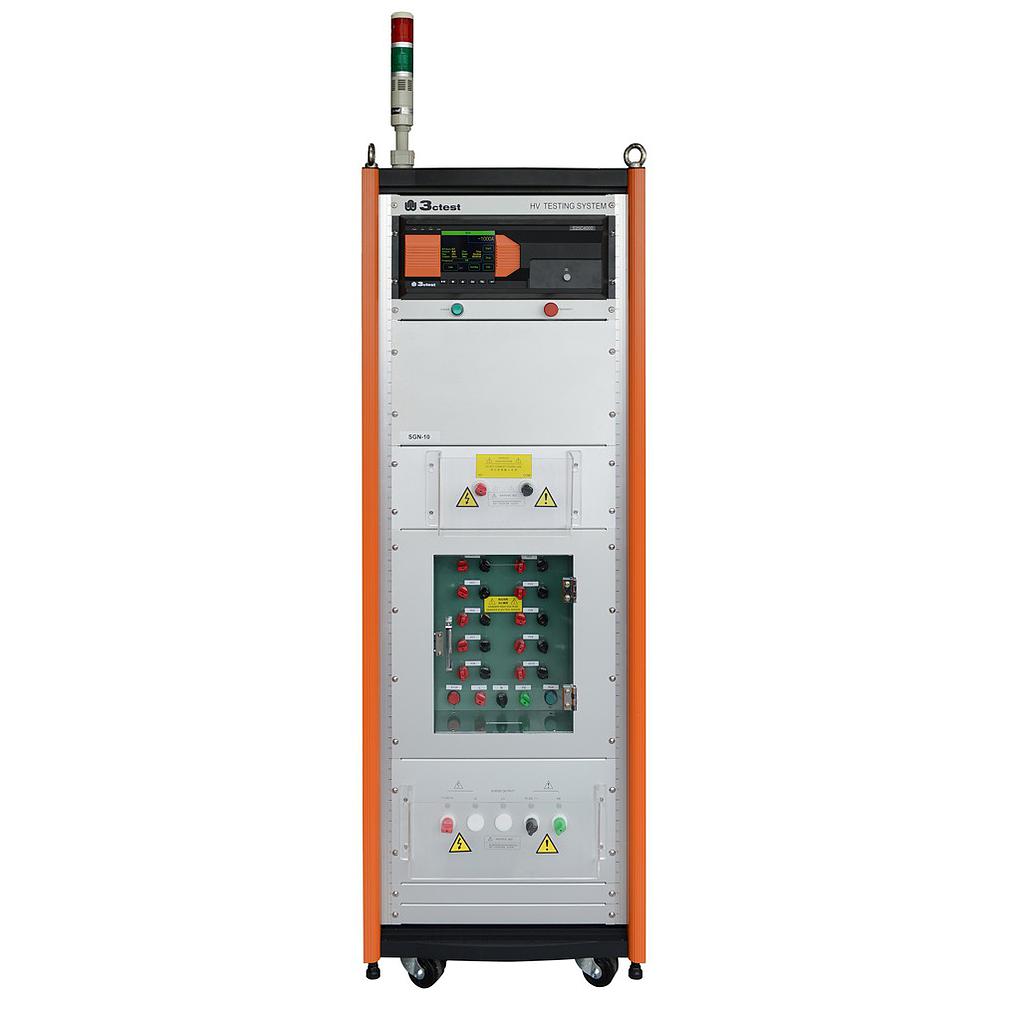

3ctest S16C4000 Impulse Current Generator (0.5 kA ~ 40 kA)

Test Current: 0.5 kA ~ 40 kA

Current Waveform:

Rise time: 8 μs, ±10%

Duration: 20 μs, ±10%

Polarity: Positive/ negative/ alternative

Source Impedance: 0.4 Ω

Repetition (time for single pulse): 11 s ~ 99 s (The minimum time is subjected to test voltage)

Counter: 1~999

Sync.: 0° ~ 360°（45 Hz ~ 65 Hz）

Trigger Mode: Manual, Auto, External Trigger

- General Parameters:

Display Screen: 5.7” TFT touch screen

Working Power: AC 110 V/220 V（±10%）, 50 Hz /60 Hz (220 V in mainland China）

Fuse: 10 A

Max. Power: 300 W

Communication Mode: Ethernet LAN, RJ45

External Control Mode: 25-pin parallel port cable

External Trigger Input: BNC, 5 V TTL, the node is open, oscilloscope can trigger the product when internal circuit is closed.

Running Control Input: BNC, 5 V TTL

Failure Detection: The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument.

Working Status Indication: LED indication and LCD display on front panel

Earthing Mode: Flat earth line

EUT Power Injection Line: φ4 mm or φ6 mm banana plug

Dimension: 35U

Weight: Approx. 210 kg

Ambient Temperature: 15 ℃ ~ 35 ℃

Relative Humidity: 45% ~ 75%

Atmospheric Pressure: 86 kPa ~ 106 kPa
