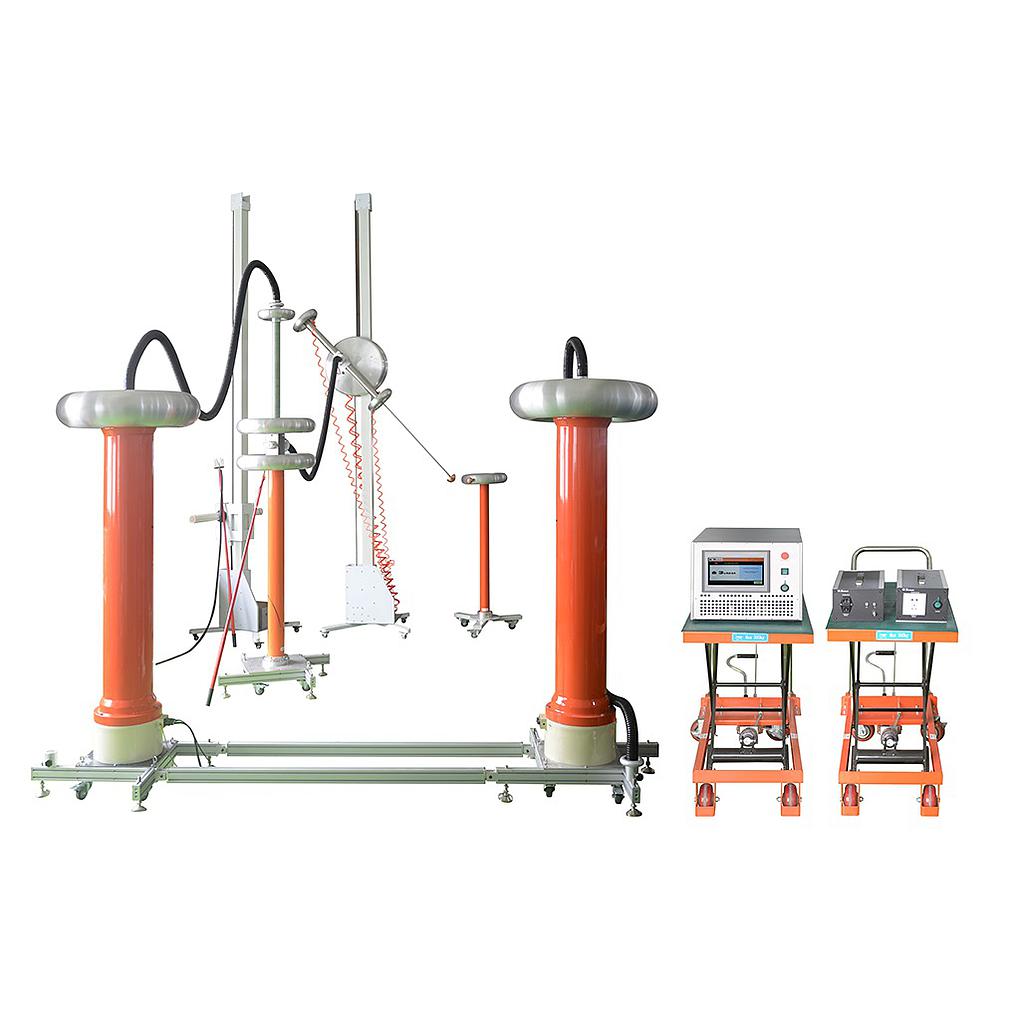

3ctest EDS 300 Electrostatic Discharge Test System (500/1000pF)

- Technical Parameters:

Storage energy capacitor: 500/1000pF

Discharge resistance: 500Ω/1Ω

Voltage of capacitor: 20～300kV

Rising edge: 15ns for human body discharge less than 25kV

Half width: 150ns for human body discharge less than 25kV

Charging voltage: 20～300kV

Discharge switch: tungsten copper ball with diameter 120

Switching mode: Cylinder motion triggered, moving distance 1m

Generator structure: Oil-immersed, integrative sealing, coaxial generator

- General Parameters:

Power supply: AC 220V 10A

Charging polarity: Positive/ Negative/ Single discharge

Current divider: Ross coil

Weight: 1500 kg
